HEATING ELEMENTS MAXIM

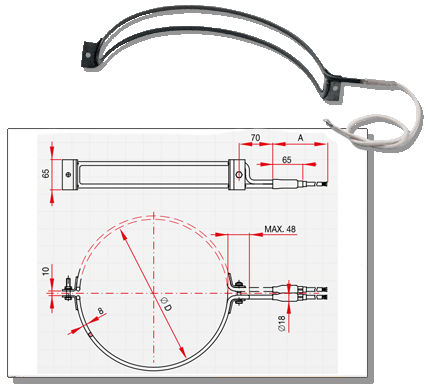

Heating element for heating of circular technological equipment, containers, reactor.

Technical description
Diameter D: 160 - 800 mm,
Length L: 20 - 270 mm
Voltage: 230, 400, 500 V,
Power input: 230, 400, 500 W

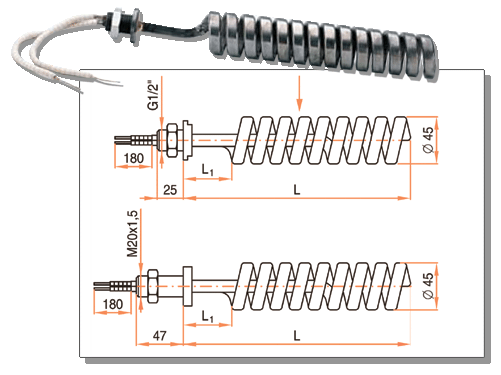

The heating element consists of steel heating branches that are attached to a steel flange with a nut. The heating element is either without any surface protection or it is protected by means of metal spraying (aluminium). The heating elements are intended for dryers with explosive environment. The user of these heating elements should adapt its surface temperature to the operational environment. The proper temperature is achieved by providing an appropriate heat transfer by means of flowing air of adequate velocity and volume, to meet the requirements for non-explosive environment. The flow direction should be perpendicular to the the spiral axis. The maximum surface operating temperature of the heating element is 400°C.

Technical description
Voltage: 76, 230, 400, 500 V,
Power input: 165, 500, 1000, 1200, 1250 W
Length L: 310 - 1000 mm
Length L: 75, 180 mm
W/cm2: 0,50 - 1,41

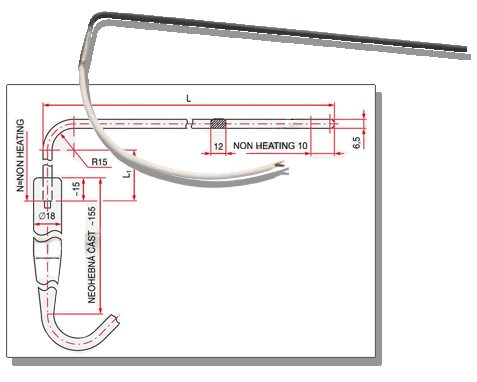

The heating element consists of steel heating branches and connecting cable. Cable has a waterproof connection. Different executions are possible. They can be used for contact heating of the plates by enclosure or by building into the groove, for air heating of calm and flowing air and for liquids heating. They can be used for defrosting also.

Produced length is between 300–3300mm and voltage between 12–400V with power according to the heated ambient. It reflect also material of the shell – steel (Class 11), stainless steel (Class 17), copper.
