HEATING ELEMENTS FOR AIR HEATING

FIELD OF APPLICATION
  • heating of steady and flowing air and technical gases
  • heating of buildings and air conditioning
  • heating of cabs and interiors of vehicles (tramways, trolley buses, trains)
  • drying
  • sterilizing devices
  • Infrared heating
APLICATION EXAMPLE

Electrical household appliances – baking ovens, grills, clothes dryers, fruit dryers, convector heaters, storage heaters, infrared heaters. Food industry – confectioner‘s and baker‘s ovens, food dryers, smoke-chambers, defrosting. Heating of interiors of vehicles (tramways, trolley buses, trains).

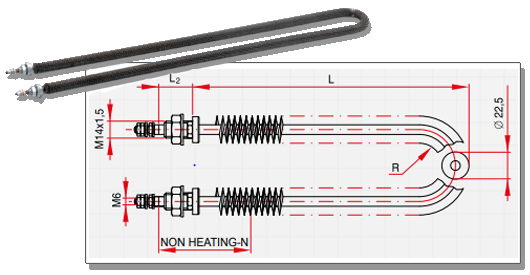

IG T09
AIR HEATING

The heating unit consists of a heating element and two flanges. The heating part of the element is wrapped with a strip for better transfer of heat to the environment. The heating element is equipped with bolt terminals and nuts M6. The fixing flanges are fitted with a nut and a washer. The active part of the heating element is made of stainless steel, the flanges are made of steel with zincchromate surface treatment.

The heating element is intended for air heating. The design of the equipment, in which the heating elements shall be applied, must ensure a natural air circulation – to facilitate heat transfer. For higher efficiency of the heating elements, a forced circulation is recommended.

Technical description
Length L: 200 - 1640 mm
Length L: 25 mm
Diameter R: 17,5 a 28 mm
Length N: 50, 75, 100
Voltage: 230, 400 V
Power input: 500 - 4000 W according to the customer's wishes

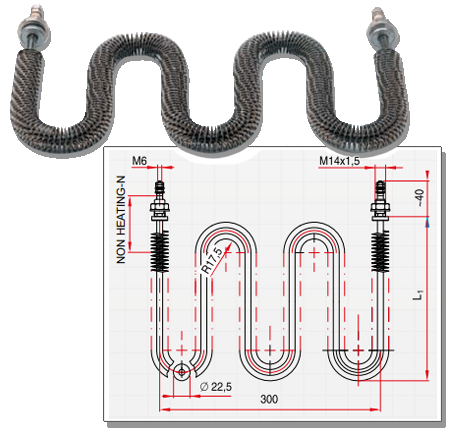

IG T12
HEATING OF BUILDINGS AND AIR CONDITIONING

The heating part of the element is wrapped with a strip for air conditioning and heating of buildings.

Technical description
Length L: na zakázku
Length N: 75 - 120 mm
Voltage: 230 V, 400 V
Power input: according to the customer's wishes

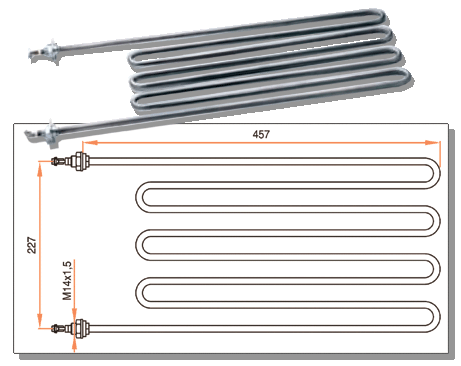

IG T11
FOR SAUNAS

The heating element for air heating in sauna. Customised dimensions, voltage and power on request.

Technical description
Voltage: 400 V
Power input: 3000 W

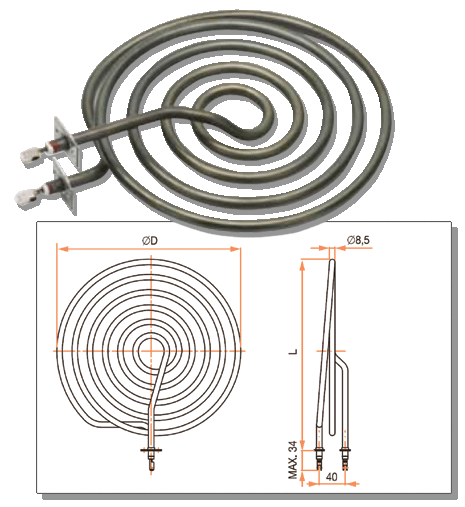

IG T12
HEATING OF BUILDINGS AND AIR CONDITIONING

The heating element for heating of buildings and air conditioning. Customised shape and dimensions on request

Technical description
Diameter D: 195, 205 mm
Length L: 240 mm
Voltage: 230, 400 V
Power input: according to the customer's wishes

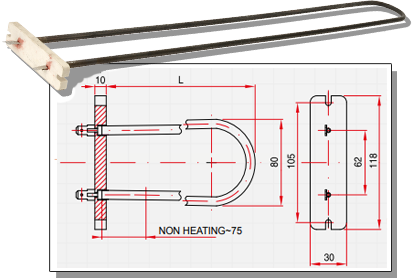

IG T13
FOR STORAGE ROOM HEATER

The heating unit consists of two heating branches and a ceramic flange. It is equipped with a flat pin terminals width 6. 3mm. The elements are made of stainless steel.

The heating elements are intended for storage room heaters AD. .D. For replacement of malfunctioned elements, please, refer to the manufacturer’s instructions. The replacement should be performed by qualified personnel only

Technical description
Length L: 511 - 1011 mm
Voltage: 230 V
Power input: 666 - 1333 W
