ELEMENTS FOR HEATING OF LIQUIDS
FIELD OF APPLICATION
- heating of water, heating of swimming pools
- heating of galvanic and chemical bathes, solutions etc.
- heating of oils and various liquids
- heating of melts of low melting temperature metals, salts, honey, paraffin, tar etc.
Application example
electrical household appliances – storage water heaters, washing machines, dishwashers, electrical boilers, oil radiators, hot water radiators, water boiling kettles, coffee makers, deep fat fries etc. In food processing industry In other industrial applications – heating of chemical bathes, galvanic bathes, solutions, high viscosity liquids, solid petroleum products, heating of gearboxes etc.

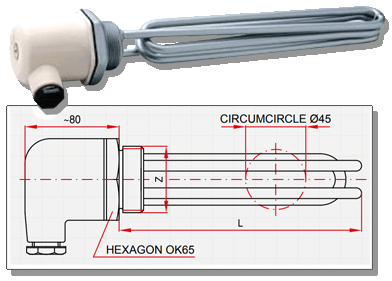

HEATING OF DIFFERENT OILS
The appliance consists of a heating element that is fixed to the flange. The element is equipped with hexagon OK 65 on the flange for screwing
The heating element is intended for direct heating of oils that do not adverse influence on the sheath. The surface temperature is chosen so as not to set the carbonization of the oil. It must be permanently immersed up to the head during operation. The element that will be removed from the oil must be off and cold.
Technical description
Length L: 300 - 980 mm
Voltage: 230 - 400 V
Power input: 500 - 2250 W

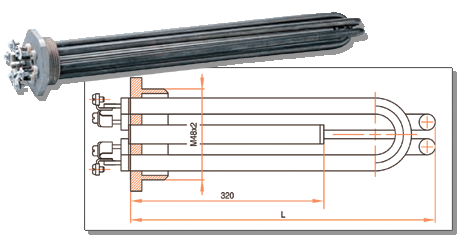

HEATING OF WATER AND SIMILAR LIQUIDS, ALKALINE AND ACID SOLUTIONS
The heating element consists of three U-shaped heating branches, which are soldered into the head by means of Ag solder. Each of the branch features one third of the total power. The head is equipped with hexagon OK65 and a mounting thread M 48x2 or G ½“. The heating elements are manufactured with brass or stainless steel head. The sheath of the heating branches is made of pickled copper, nickel plated copper or stainless steel. It is also possible to use all-stainless steel welded in a protective atmosphere of argon.
It must be permanently immersed up to the head during operation.
Technical description
Length L: 240 - 610 mm
Voltage: 230, 400 V
Power input: 1500 - 7500 W

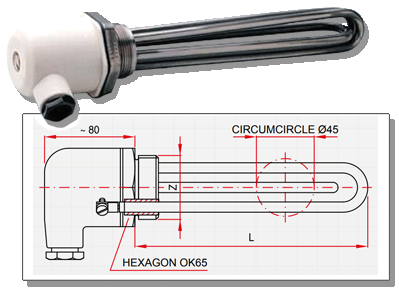

HEATING OF SWIMMING POOLS (CHLORATED WATER)
Elements is intended for heating of water in the swimming pools. Necessary water flow (high surface load). Nut INCOLOY 800.
Technical description
Length L: 345 - 605 mm
Voltage: 230 - 400 V
Power input: 1500 - 21000 W

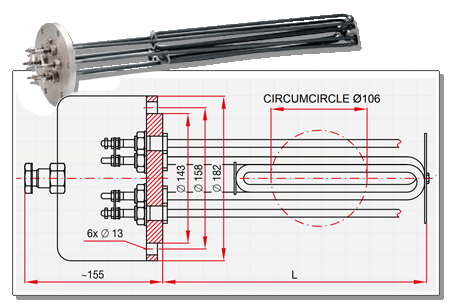

HEATING OF WATER AND SIMILAR LIQUIDS
The heating element consists of three heating branches, which are mounted into a nickelplated steel flange with six fixing openings diam.13mm on a circumcircle diam.158mm.
The heating element is intended for direct heating of water and similar liquids. It must be permanently immersed during operation. Flanges and power input can be changed on request
Technical description
Length L: 500 - 800 mm
Voltage: 3 x 400 V
Power input: 7500 - 15000 W

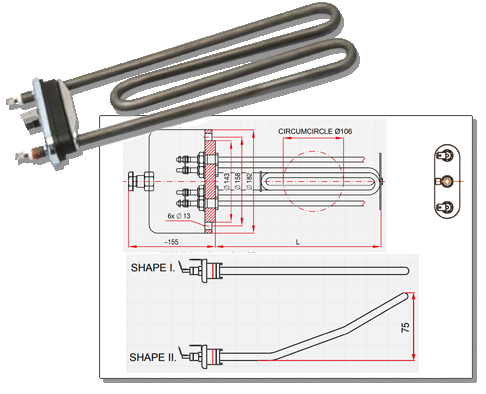

HEATING OF WATER IN WASHING MACHINES
The heating element consists of one heating branch which is fixed to the holder. It is equipped with connecting flat terminals width 6.3mm.
The heating element is intended for direct heating of water in washing machines. It must be permanently immersed during operation.
Technical description
Length L: 180 - 370 mm
Voltage: 230 - 400 V
Power input: 1750 - 4000 W

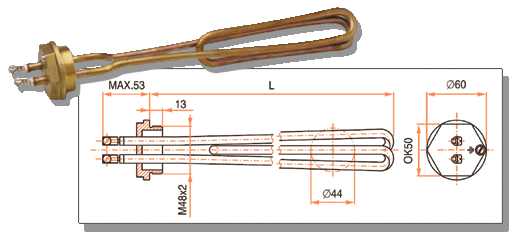

HEATING OF WATER; STORAGE WATER HEATERS
The heating element consists of one shaped heating branch, which is mounted into a brass head. The heating branch is equipped with connecting terminals with screws M4 for cable connection. The head is equipped with a hexagon OK 50.
The heating element consists of one shaped heating branch, which is mounted into a brass head. The heating branch is equipped with connecting terminals with screws M4 for cable connection. The head is equipped with a hexagon OK 50.
Technical description
Length L: 230 - 408 mm
Voltage: 230 V
Power input: 1000 - 2400 W
