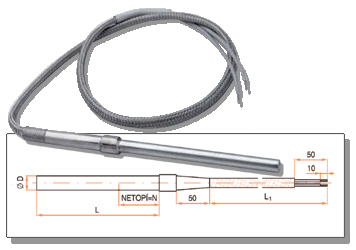

Cartridge heaters with cable in flexible metal braid are fitted with wires with glass fibre insulation featuring enhanced thermal resistance. The metal braid protects the cables against mechanical damage and wear, especially at bends over edges.
Technical description
Diameter D: 6,5 mm - 20 mm
Length L: 200 a 1000 mm

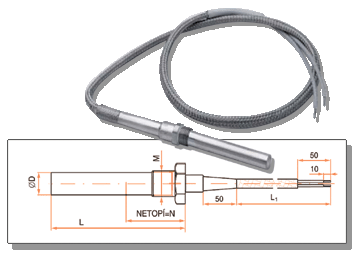

Cartridge heaters with flange are fitted at the terminal side with a threaded part for easy assembly and disassembly. Diameter D of the cartridge corresponds to thread dimension M on the flange.
Technical description
Diameter D: 6,5 mm - 20 mm
Thread dimension M on the flange: 10x1, 12x1,5, 14x1,5, 16x1,5, 20x1,5, 27x1,5
Length L: 200 a 1000 mm
Cartridge heaters with cable in flexible metal braid are fitted with wires with glass fibre insulation featuring enhanced thermal resistance. The metal braid protects the cables against mechanical damage and wear, especially at bends over edges.
Technical description
Diameter D: 6,5 mm - 20 mm
Length L: 200 a 1000 mm

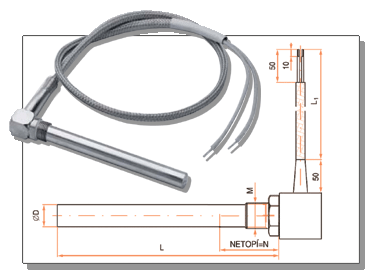

Right angle cartridge heaters with flange are fitted at the terminal side with a threaded part for easy assembly and disassembly. Diameter D of the cartridge corresponds to thread dimension M on the flange.
Technical description
Diameter D: 6,5 mm - 20 mm
Thread dimension M on the flange: 10x1, 12x1,5, 14x1,5, 16x1,5, 20x1,5, 27x1,5
Length L: 200 a 1000 mm

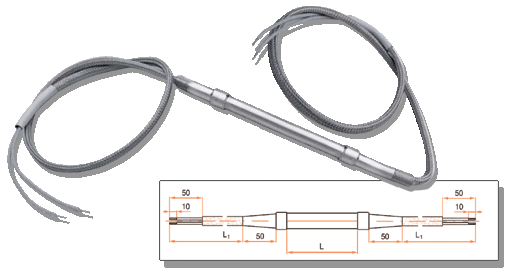

Version with double-sided outlet with wire braiding is fitted with conductors with fiberglass insulation with increased temperature resistance. Metal wire braiding provides excellent protection against mechanical damage, especially when bending over the edges or against abrasion.
Technical description
Diameter D: 6,5 mm - 20 mm
Thread dimension M on the flange: 10x1, 12x1,5, 14x1,5, 16x1,5, 20x1,5, 27x1,5
Length L: 200 a 1000 mm
